| Product Parameters | ||
| Model No： | YJLED-004D |
| Power： | 1-3.2W | |
| RGB： | auto program | |
| Voltage： | AC 24 | |
| Power Factor： | 0.9 | |
| Chip： | 5050 SMD | |
| CRI： | 75 | |
| Color： | RGB | |
| Beam Angle： | 180° | |
| Working Temperature： | ﹣20℃-50℃ | |
| IP Degree： | IP65 | |
| LED quantity： | 12/16 | |

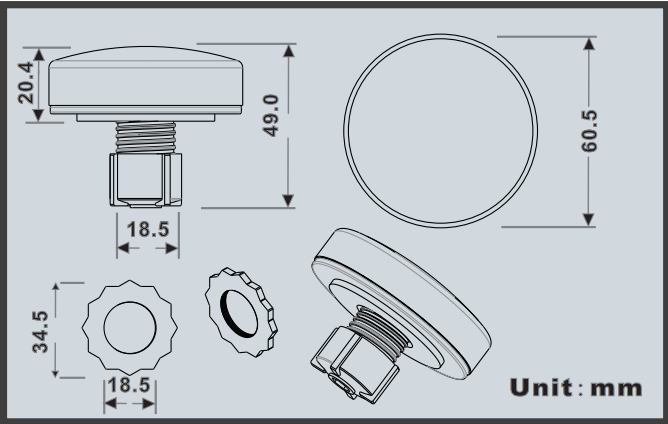

Product Structure:
Product Description:
This 60mm automatic rgb led amusement puck lights is made by12/16pcs smd5050 rgb led,drived by ac24V,can provide lights for guests , shell, base, installation guide, etc
Feacture:
1. There is the effect of windmill rotation;
2. There is no light on the back;
3. Classic product, the product technology is mature, the defect rate is low, the lighting effect is various and optional, and special effects can be customized;
4.Cover: clear flat cover/cabochon cover/line cover;
Applications:
Amusement LED lamps are widely applied in amusement equipments in theme parks, such as Ferris Wheels, Roller Coasters, Carousels, Merry-go-rounds, Wheel Rides, Tower Rides, Flume Rides and Water Rides.
Caution
Please read the specification before used:
working temperature range -25°C-45°C
working voltage range less than +_10
Please turn off the power before installation
Conclusion
At Aglare LED amusement lighting, we have provided supplies for fairground lighting projects of all shapes and sizes and lighting components including automatic RGB Led Lights,programmable RGB Led lights,LED transformers, RGB flood light and e10 e14 fairground light.If you’re unsure whether we’ve supplied lighting for the project you have in mind before, just get in touch!
We have Auto RGB 1-16 programmed, also accepted customizedspecial programmed to customers.Customized requests are available, for example: logo, transparent or milky cover
Auto RGB Pre Programmed Amusement Lights Color Changing LED in AC24V/60V/110V,Led Lights has an on-board controller,eliminating the need for any RGB controller.
Automatic RGB led programmed products is made up of PCB, plastic cover and base,2-pins connectors. As well as a series of gluing process to ensure good water and UV resistance.
The features of this product are high brightness, low power dissipation, long lifespan, low voltage decline and excellent thermal management and lumen maintenance.
This product has CE and RoHS certifications.
60mm 1-16Auto RGB LED 5050smd rgb auto running ac24v pre-programmed IP65 features:
1.Aglare is a professional manufacturer with more than 10 years experience in fairground LED lights.
2.Class A quality with 1 years warrany for all items.
3.Orignal Sanan chips with 100% Class A grade.
4.All leds 100% Qc passed before the shipment.
5.Fully automantic instruments and equipments like solica crystal,wire,sealing glue,spectral color separation.
Product details:
1.Item model number :YJLED-004D
2.Manufacturer:AGLER
3.LED quantity: 12/16pieces
4. LED type: 5050SMD LED
5. Input voltage: AC24V
6.Weight: 73.4g
7. Total power consumption:3W
8. Colors available: RGB
9.Waterproof Grade: IP66
10. Dimension: D*H=60*41mm
11. Excellent thermal management and lumen maintenance
12. This product has CE and RoHS certifications.
